LAS6001 + LAS6011 Magnetic Seals
Medium Duty

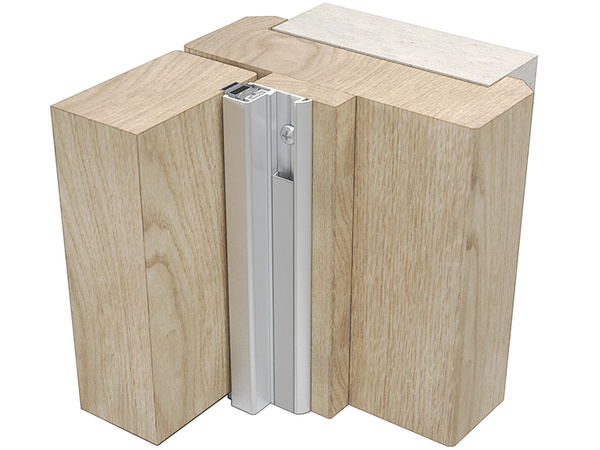

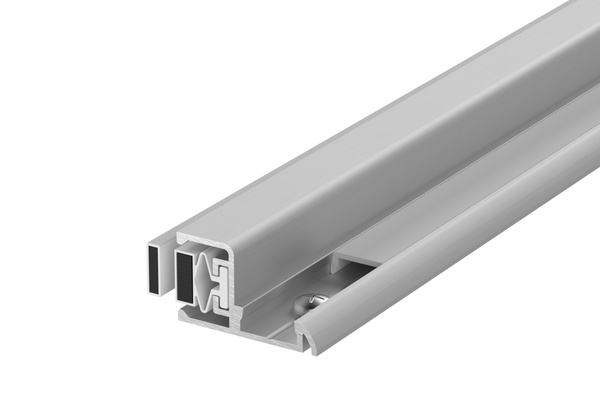

A refrigeration-type vinyl magnetic strip in anodised aluminium housing. The strip holds the door closed so latches are not always required. Concealed fixings, pre-drilled + slotted holes for easy adjustment. Easily installed without removing the door + it can be used as a stop. Option to be supplied with magnetic keeper strip (LAS6011).
Finish
System specification
| Property | LAS6001 | LAS6011 |
|---|---|---|
| TEST EVIDENCE | Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 40dB) | Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 40dB) |
| Location | Head + jambs of single swing steel clad doors + timber doors (use with LAS6011) | Head + jambs of single swing steel clad doors + timber doors (use with LAS6001) |
| SEAL MATERIAL | flexible insert with magnetic core | PVC sleeve with magnetic insert |
| Standard finish | Silver anodised aluminium with grey insert as standard | White, black, grey, light brown, dark brown or PVC sleeve. |
| Non-standard finish | Bronze anodised aluminium with black black insert are subject to non-standard charges and additional lead times | Other colours, including woodgrain finishes to special order |
| STANDARD LENGTHS | 1m + 2.1m. Other lengths + single doorset packs consisting of 1 x 1m + 2 x 2.1m available to special order | 1m + 2.1m. Other lengths + single doorset packs consisting of 1 x 1m + 2 x 2.1m available to special order |
