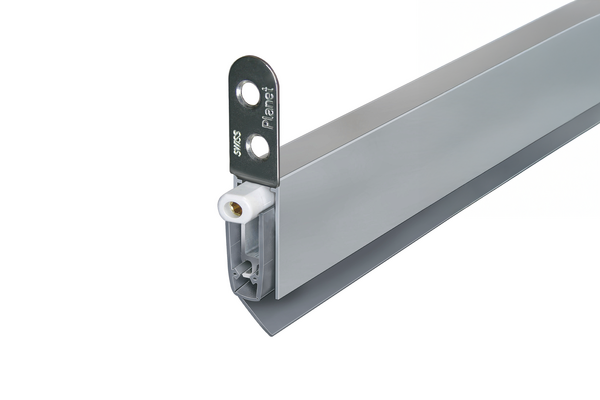

Planet RH drop seal
Mortised

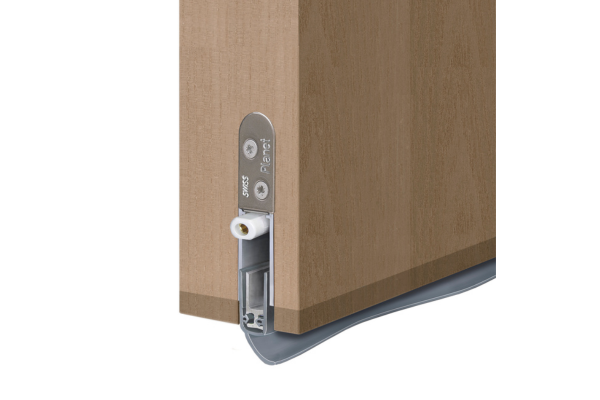

A mortised automatic drop seal designed for timber, metal, and PVC doors. Featuring a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering and automatic adaptation to uneven floors. Its bevel lip ensures a secure seal on irregular surfaces and accommodates gaps of up to 27mm. Suitable for fire and smoke-shielding doors.

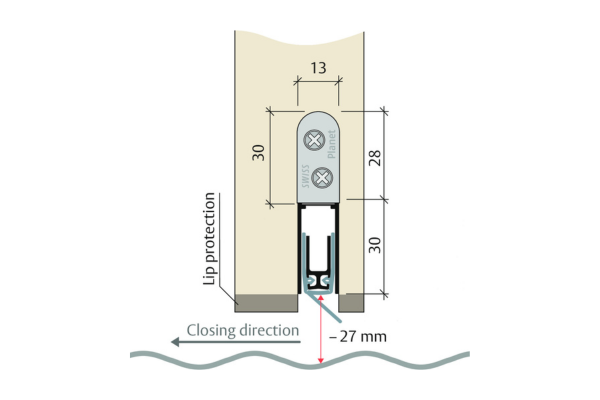

System specification
| Property | |
|---|---|
| Profile size | 13 x 30mm |
| Max. drop height | 27mm |
| Profile material | Aluminium |
| Seal material | High-quality silicone or high-quality self-extinguishing silicone |
| Can be shortened | max. 125mm (335mm only 115mm) |
| Sound insulation | up to 44 dB |

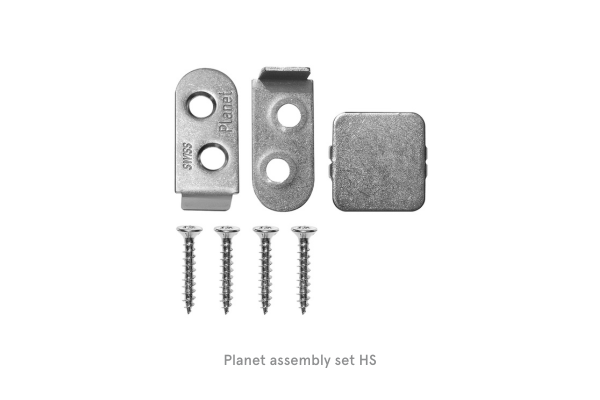

| Incl. accessories | Planet HS assembly set with 2 mounting brackets (stainless steel), 4 screws and stopping plate type 1 (stainless steel) |
