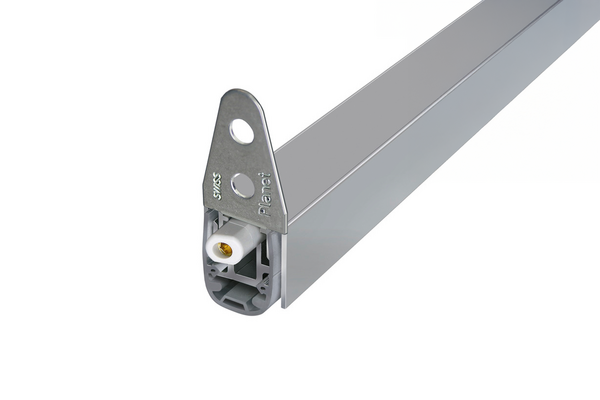

Planet MF PLUS Drop Seal
Mortised

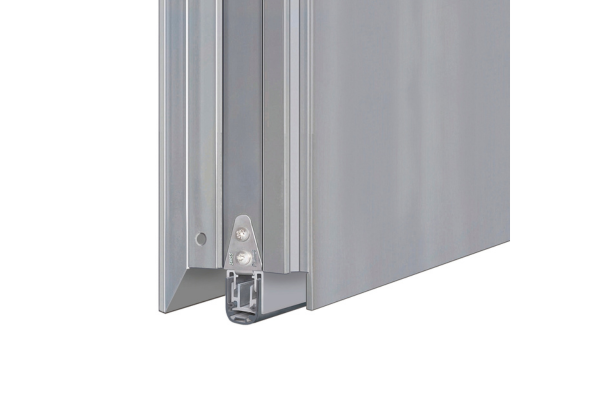

A mortised automatic drop seal designed for metal, timber, and PVC doors. Featuring an enhanced gasket for superior acoustic performance and a high-efficiency mechanism with hinge-side triggering, it enables parallel lowering with automatic compensation for sloping floors. Suitable for flat, even floors, with a maximum drop of 16mm.
System specification
| Property | |
|---|---|
| Possible door types (depending on options) | Single swing doors, double swing doors, sliding doors, folding doors |

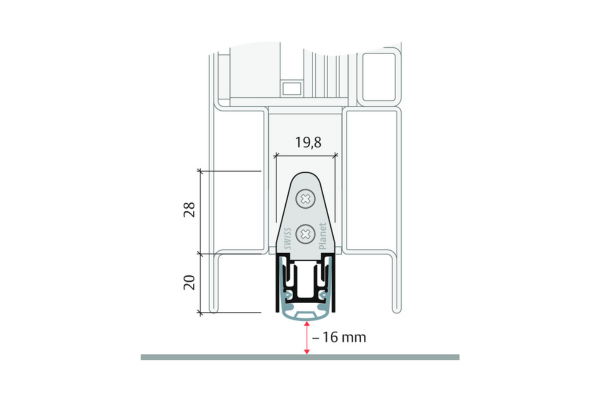

| Profile size | 19.8 x 20 mm |
| Max. drop height | 16 mm |
| Profile material | Aluminium |
| Seal profile | High-quality self-extinguishing silicone |
| Sound insulation | up to 54 dB |
| Standard lengths | 335mm, 460mm, 585mm, 710mm, 835mm, 960mm, 1085mm, 1210mm, 1335mm, 1460mm, 1585mm. |
| Non-standard lengths | Sizes up to 6m are available to special order |
| Can be shortened | max. 125 mm (335 mm only 115 mm) |
| Fixing | Fixing with mounting bracket and self-tapping screws on the side |

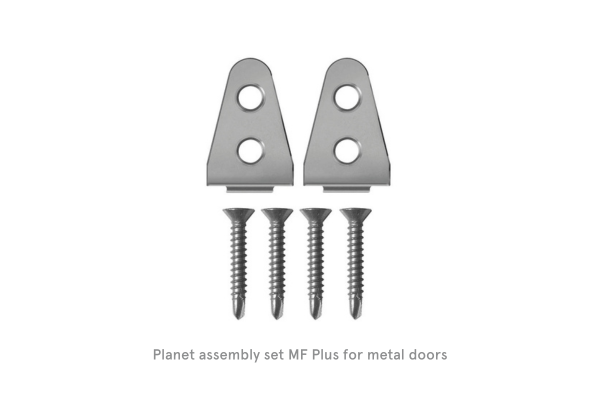

| Incl. accessories | Planet assembly set MF for metal doors with 2 mounting brackets and self-tapping screws |
