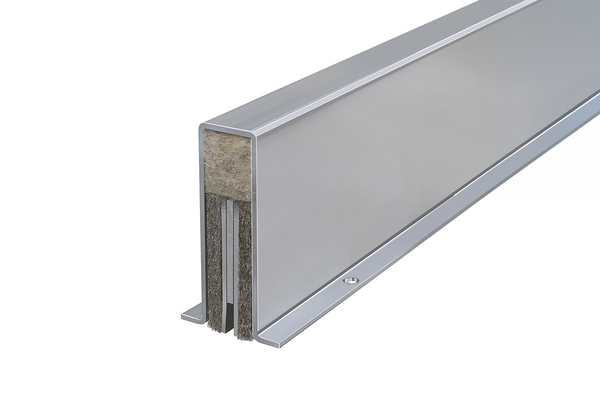

Planet BL Drop Seal
Mortised

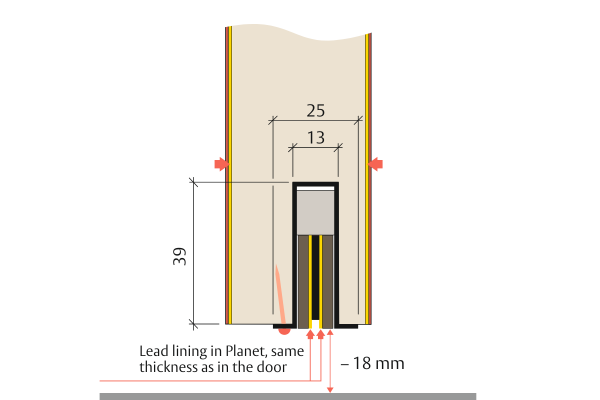

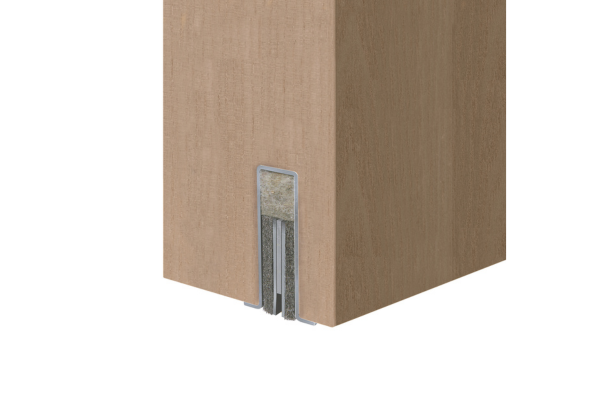

A mortised automatic drop seal designed for radiation-resistant doors. Featuring a hinge-side release with automatic compensation for sloping floors, it delivers a parallel seal drop of up to 18mm. The flush-bottom profile is grooved into the door leaf and can be specified with a choice of lead inlay thickness from 0.5–4mm for specialist shielding.
System specification
| Property | |
|---|---|
| Characteristics | Suitable for radiation protection doors made of wood or metal |
| Possible door types (depending on options) | Single swing doors, double swing doors, sliding doors, folding doors |
| Max drop height | 18mm |
| Profile material | Aluminium profile with lead inlay |
| Seal material | Lead inlay thicknesses: 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 4mm (lead thickness |
| Fixing | Fixing screws are supplied. This seal is mortised. Fix from below on one side with on-site nails/screws |
| Finishes | Silver as standard |
