LVN20S Intumescent Air Transfer Grille
Non-Vision Fire + Smoke Resistant
The LVN20S provides a unique solution to the problem of containing both fire and cold smoke in emergency conditions yet offering good air transfer through doors in everyday use. Using the same intumescent louvred slat configuration as the LVN20, but incorporating an electro mechanically operated smoke shutter mechanism. Can provide up to 60 minutes fire and smoke resistance.
System specification
| Property | |
|---|---|
| Application | Suitable for doors. Please note: in applications where high levels of humidity or wetness are anticipated, please speak to our Technical Department for alternatives |
| Thickness | 2 pieces x 20mm |
| Free area | Approx 30% free area |

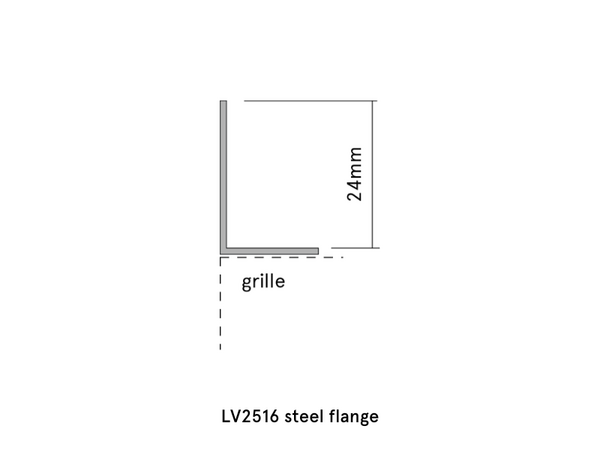

| Material | Rigid PVC slats with an intumescent core. Steel flange. Electro mechanically operated smoke shutter mechanism |
| Finish | Silver as standard |
| Use with | Talkback damper control system. Conductor hinges. Optional Alarm Monitoring System (AMS) + battery backup |
| Test evidence | Fire: BS 476-20 + 22: 1987. Smoke: BS 476-31.1: 1983 (shutterplate) |
| Performance | Can be used to provide up to 60 minutes resistance to fire + cold smoke |
| CERTIFICATION | |
| Certifire | CF564 |
