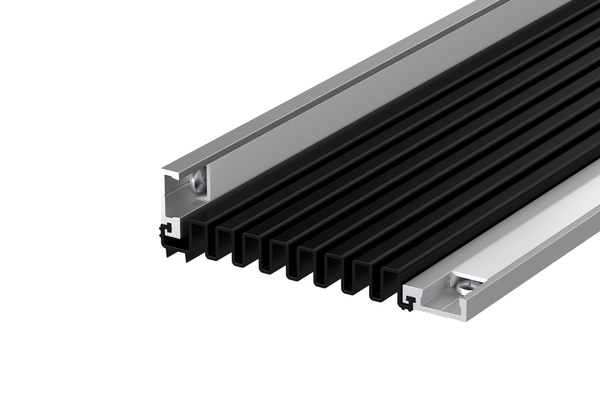

LAS9070 si Finger Guard Seals
FINGER GUARD SEALS
This medium duty finger guard seal for the hinge cavity side of the door is part of a system that provides a shield to trapping fingers in hinged doors, which can cause horrendous injuries. Combine it with the LAS9050 si on the hinge knuckle side for a complete system.
Product update: cream gasket no longer available.
Finish
System specification
| Property | LAS9070 SI | LAS9050 si |
|---|---|---|
| LOCATION | Jambs of hinged doors - hinge cavity side. LAS9070 si can be used on doors with an opening of 180° | Jambs of hinged doors - hinge knuckle side |
| SEAL MATERIAL | Silicone | Silicone |
| Finish | Silver anodised aluminium with grey cover strip and grey gasket as standard | Silver anodised aluminium with grey cover strip and grey gasket as standard |
| Non-standard finish | Bronze anodised aluminium with black cover strip and black gasket are subject to non-standard charges and additional lead times. Black or brown gaskets are available to special order (non-standard - charges and lead times apply) | Bronze anodised aluminium with black cover strip and black gasket are subject to non-standard charges and additional lead times. Black or brown gaskets are available to special order (non-standard - charges and lead times apply) |
| STANDARD LENGTHS | 2.1m. Other lengths to special order. Single doorset packs are available containing 1 x 2.1m LAS9070 si | 2.1m. Other lengths to special order. Single doorset packs are available containing 1 x 2.1m LAS9050 si |
