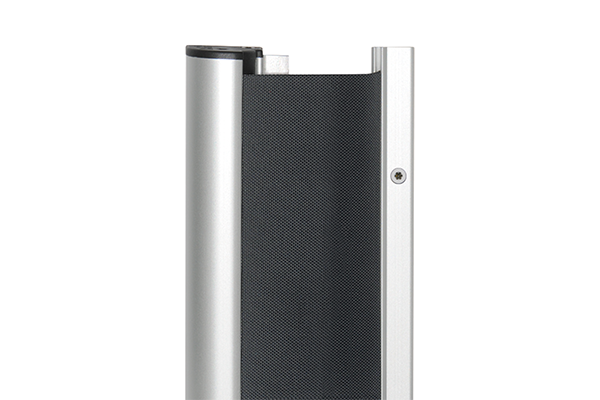

FSR 5000 Fingerguard Seal
Cavity side

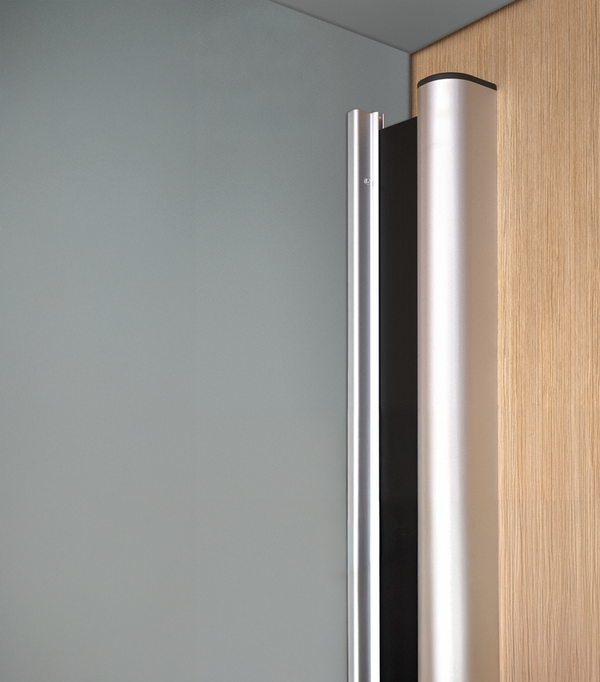

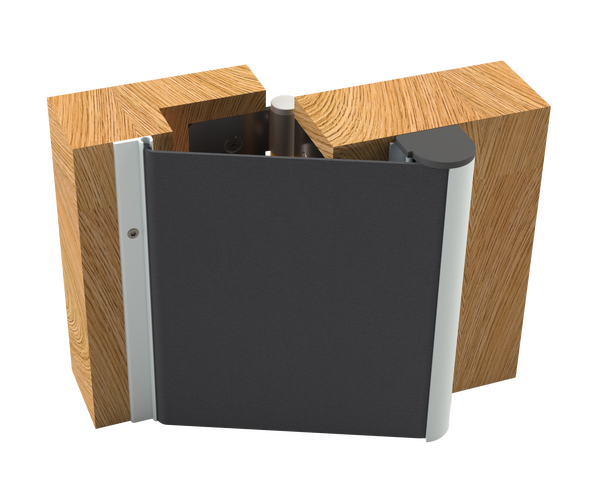

A durable roller-type safety finger protector designed to prevent fingers becoming trapped on the non-hinge (secondary closing edge) of swing doors.

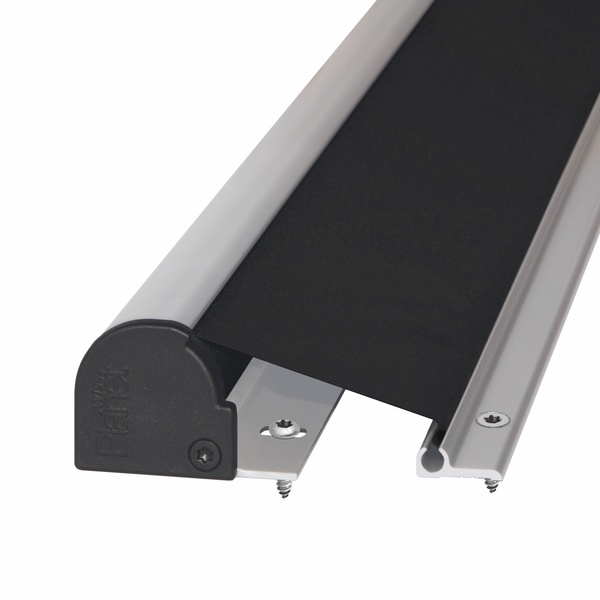

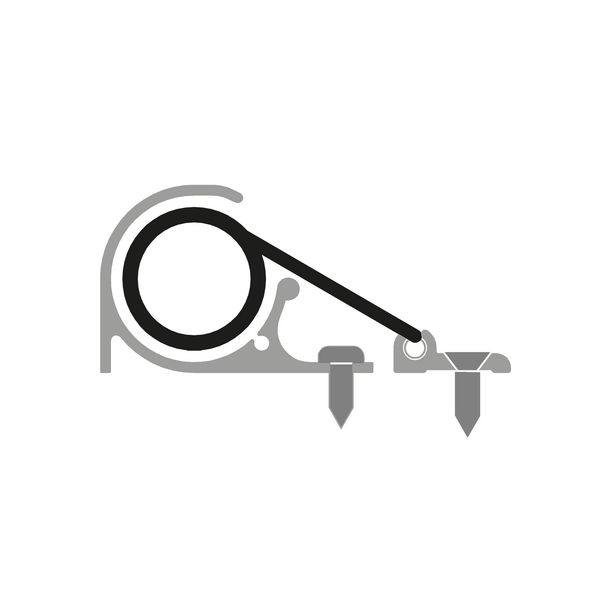

The tensioned roller mechanism maintains constant tension, creating a protective barrier between the door leaf and frame as the door opens and closes. The aluminium housing features adjustable fixing positions for accurate alignment during installation. The hard-wearing synthetic fibre is fire retarded
(B1 classified). Suitable for timber, metal, PVC and glass doors.
Finish
System specification
| Property | |
|---|---|
| LOCATION | Suitable for doors made of wood, metal, PVC or glass. Suitable for manually operated and power operated doors. Single swing doors |
| SEAL MATERIAL | Carrier: aluminium. Gasket: Synthetic fibre |
| Standard finish | Silver anodised aluminium with grey cover strip and black gasket |
| STANDARD LENGTHS | 1925mm as standard. 2015mm as standard for automatic doors. Other lengths to special order. Maximum length: 2500mm. Minimum length: 310mm. Please note: These seals must be ordered at the required length, as they cannot be cut down. |
