FSR 6000 Fingerguard Seal
Cavity side

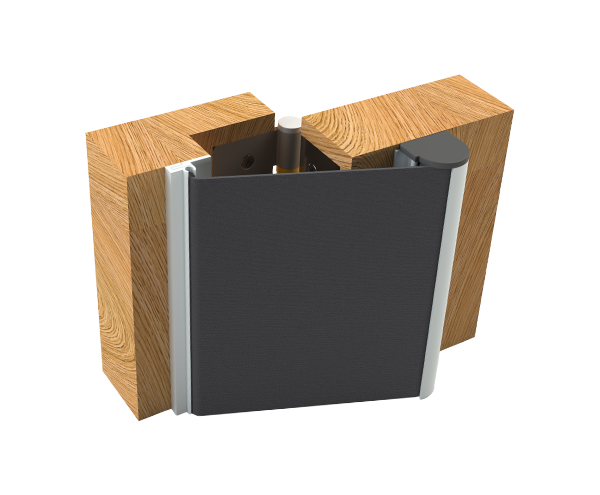

A durable roller-type safety finger protector designed to prevent fingers becoming trapped on the non-hinge (secondary closing edge) of swing doors.

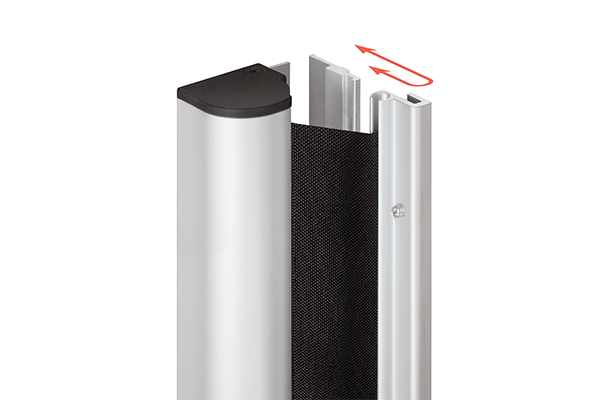

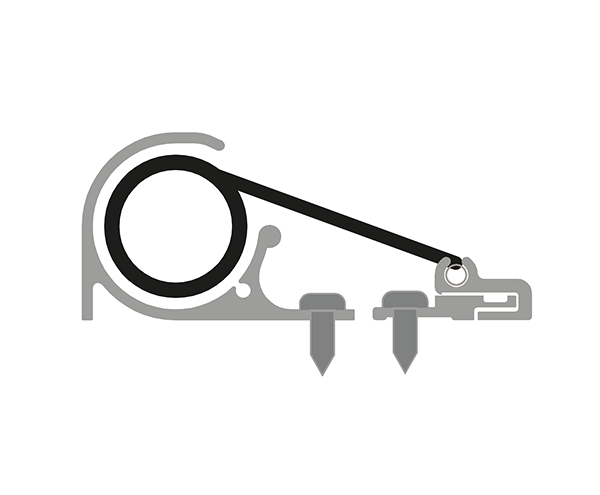

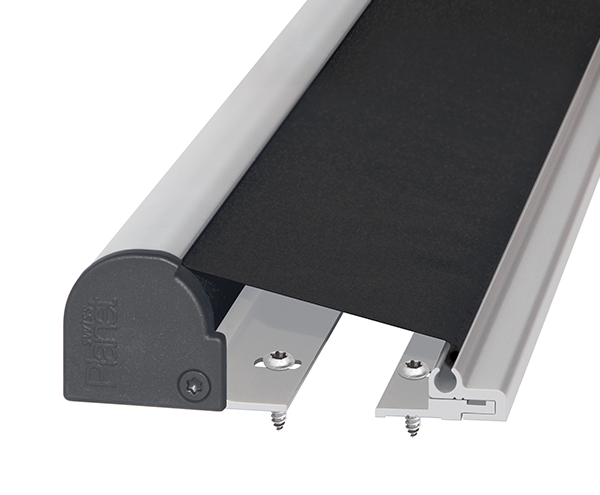

The constant-tension roller mechanism forms a protective barrier as the door opens and closes. Features a clip-on fabric that allows quick removal for inspection and maintenance of hinges and door hardware. Suitable for internal and external doors. Fire tested to BS EN 1634-1:2014+A1:2018 (FD30 & FD60).
Finish
System specification
| Property | |
|---|---|
| TEST EVIDENCE2018 (FD30 & FD60) | Fire: BS EN 1634-1:2014+A1:2018 (FD30 & FD60). Durability: 2,000,000 cycles |

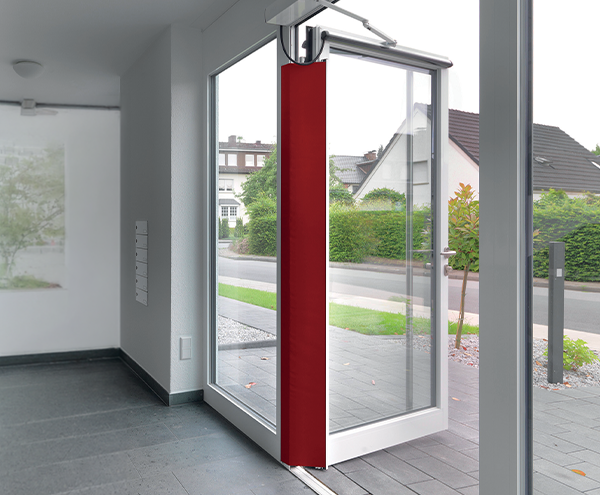

| LOCATION | Suitable for doors made of wood, metal, PVC or glass. Suitable for manually operated and power operated doors. Single swing doors |
| SEAL MATERIAL | Carrier: aluminium. Gasket: Synthetic fibre |
| Standard finish | Silver anodised aluminium with grey cover strip and black gasket |

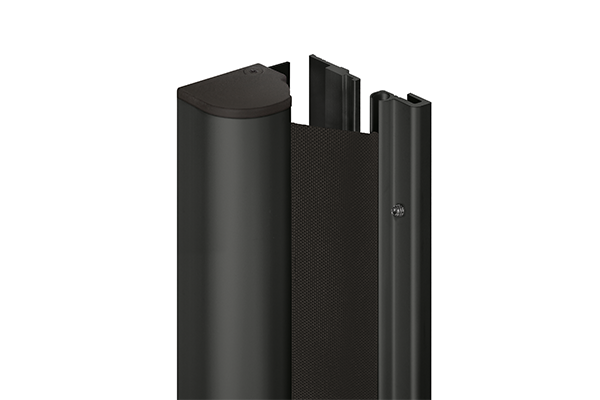

| Non-standard finish | Matt black, white, grey, anthracite, stainless steel, and RAL carriers available to special order (non-standard - charges and lead times apply). Grey, white, red, blue, yellow gaskets are available to special order (non-standard - charges and lead times apply). |
| STANDARD LENGTHS | 1925mm as standard. 2015mm as standard for automatic doors. Other lengths to special order. Maximum length: 2500mm. Minimum length: 310mm. Please note: These seals must be ordered at the required length, as they cannot be cut down. |
