LAS8013 si Drop Seal
Mortised

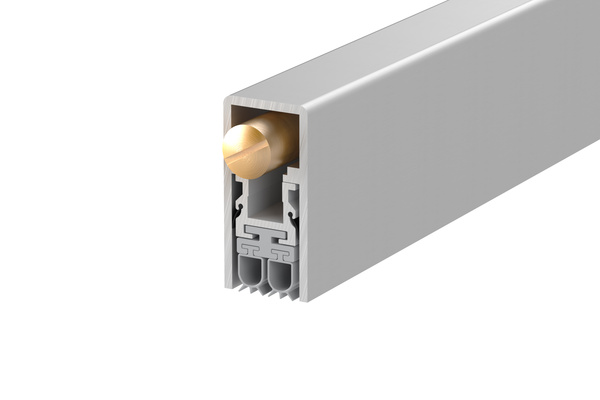

A heavy duty, automatic drop seal designed for optimum performance. It requires no power connection. Self-levelling on uneven floors; seal height can be adjusted independently of fixing screws. Supplied with standard nylon end caps. Die cast end plates in a metallic finish for premium aesthetics are an option.
Finish
System specification
| Property | |
|---|---|
| TEST EVIDENCE | Acoustic: BS EN ISO 10140-1: 2010+A2: 2014 (Annex J) up to Rw 43dB |
| PERFORMANCE | Meets smoke requirement: BS 9999: 2017 |
| LOCATION | Single swing, single + double leaf doors. For use on both right + left handed doors |
| MIN/MAX GAP SIZES | 1mm/15mm |
| SEAL MATERIAL | Black or grey silicone rubber |
| Standard finish | Silver anodised aluminium with grey end caps and grey silicone rubber gasket as standard. The non-button end cap is designed blank, creating an engineered smooth aesthetic |
| Non-standard finish | Silver anodised aluminium with black end caps and black silicone rubber gasket (non-standard - charges and lead times apply) |
| STANDARD LENGTHS | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 275mm |
| ADJUSTMENT | Self-levelling on uneven surfaces - can be adjusted independently of the fixing screws |
| CERTIFICATION | |
| UL | R27972 |
