LAS8001 si Drop Seal
Mortised

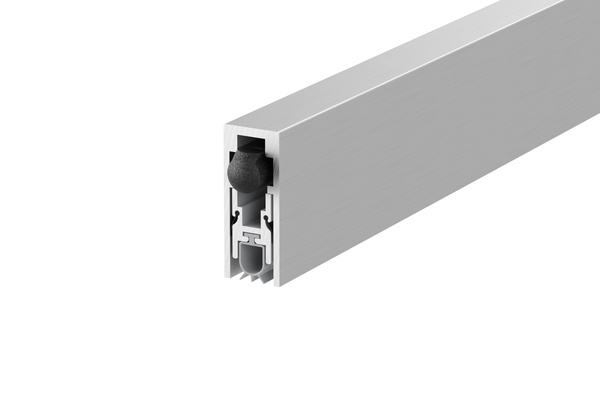

A slimline, mortised automatic drop seal. It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Requires no power connection. Self-levelling on uneven floors; seal height can be adjusted independently of fixing screws.
View the LAS8001 si drop seal animation.
Note (May 2025): Carrier finish updated from satin anodised aluminium to mill finish.
Finish
System specification
| Property | |
|---|---|
| Test evidence | Fire: BS EN 1634-1:2014 + A1:2018 & BS 476-22:1987 (FD30 & FD60). Cladding kit must be used for FD60 variant. Smoke: BS EN 1634-3:2004 at ambient and medium temperature; effective smoke seal up to 200°C; BS 476-31.1:1983 at ambient temperature. Acoustic: BS EN ISO 10140-2:2010 |
| Location | Single swing, single and double leaf doors. For use on both right and left handed doors. |
| Min/max gap size | (up to Rw 39dB). Durability: 100,000 cycles. |
| Seal material | Grey or black silicone rubber |
| Standard Finish | Mill finish carrier with silver end plates, and grey silicone rubber gasket as standard. |
| Non-standard finish | Mill finish carrier with bronze end plates, and black silicone rubber gasket are subject to non-standard charges and additional lead times. |
| Standard lengths | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Sizes above 1235mm are available on request. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 255mm |
| Adjustment | Self-levelling on uneven surfaces. Please note: Drop seals under 635 mm are supplied with a single spring and will only operate once fully fitted and in use |
| CERTIFICATION | |
| Certifire | CF5179 |
| UL | R27972 |
