FF1 30 Minute Glazing System
Bead Applied System

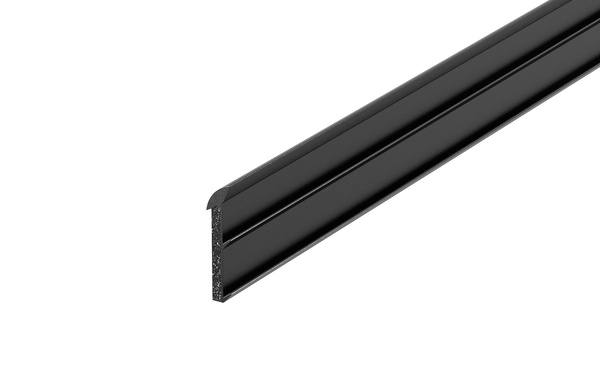

FF1 (Flexible Figure 1) is designed for use with glazed apertures in 30 minute fire resistant doors. Comprises a pair of bead applied intumescent strips. Featuring a unique design which enables tolerances between door, bead and glass thicknesses to be accommodated. Tested with many popular glass types.
Colour
System specification
| Property | |
|---|---|
| TEST EVIDENCE | Fire: BS 476-22: 1987 |
| Application | FD30 fire doors |
| SEAL MATERIAL | Intumescent graphite |
| Glass thickness | 5mm – 7.2mm |
| Standard lengths | 50m coils. 5 coils per box |
| MOQ | 1 box (250m) |
| Standard finish | Black |
| Non-standard finish | White and light brown are subject to MOQs |
| CERTIFICATION | |
| Certifire | CF327 |
