EA280 Door Loop
Concealed

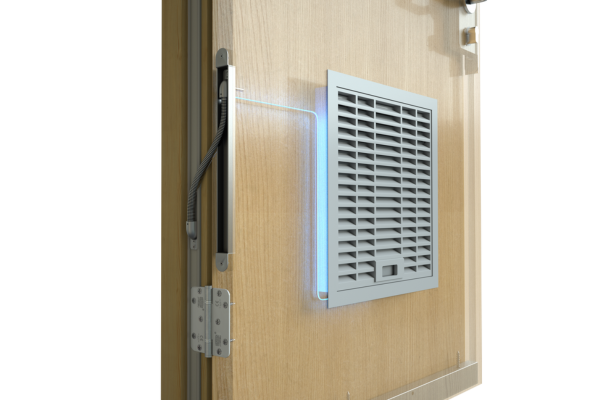

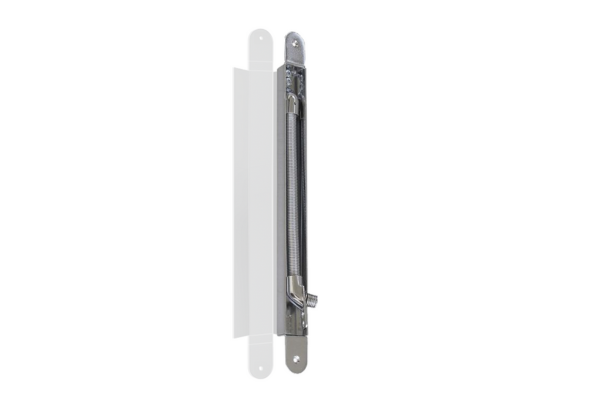

The ABLOY EA280 Concealed Door Loop is used with fire and smoke resisting air transfer grilles to enable the discreet and uninterrupted transfer of power from the door frame into the door leaf. Designed for a clean, concealed finish, the door loop is completely hidden when the door is closed, preserving the door’s appearance while maintaining functionality.

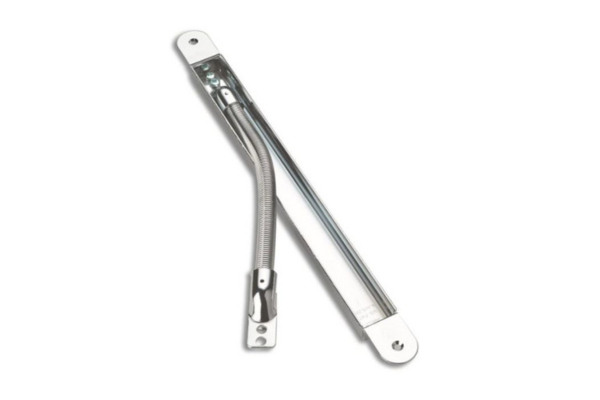

Suitable for doors that open up to 120°, where the hinge pin is within 20mm of the frame, it supports a wire bundle up to 7.5mm in diameter. It is recommended to use multicore cable because of its increased bending strength.
System specification
| Property | |
|---|---|
| Test Evidence | Fire: BS EN 1634-1:2014+A1:2018. Intumescent cladding kit must be used: 1mm FD30 / 2mm FD60 |
| Application | Suitable for FD30 & FD60 timber fire doors |
| Use with | Talkback Damper System. LVN20S / LVN25S |

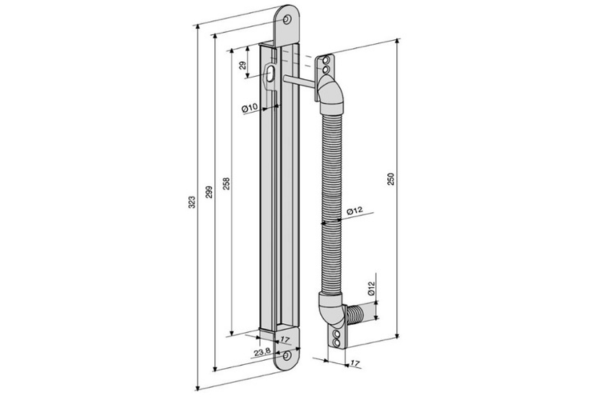

| Overall height | 323mm |
| Width | 24mm |
| Depth | 17mm |
| Max. cable diameter | 7.5mm |
| Material | Available in a bright chrome finish |
| Fixing | To be fitted with MAP intumescent protection kit: 1mm FD30 / 2mm FD60. Failure to install the intumescent protection, will invalidate the fire test evidence |
| INTUMESCENT SLEEVE FOR CABLE WAY | |
| Internal diameter | 5mm |
| Overall diameter | 9mm |
| Routing diameter | 10mm |
| Length | 1000mm |
