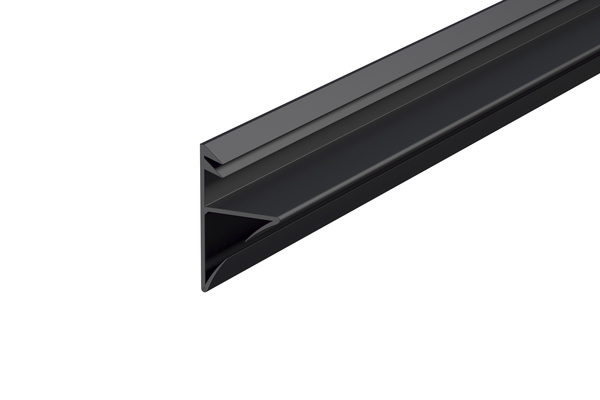

LAS1212K Batwing®-On-A-Stick Perimeter Seal
Kerf fit

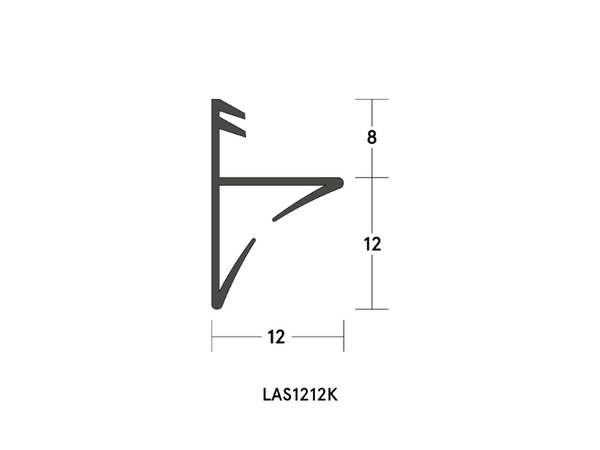

The LAS1212K Batwing®-on-a-stick is a smoke and acoustic seal designed for easy installation with its innovative kerf fixing feature. The 12mm profile, with a double fin design provides a reliable barrier against smoke and sound while minimising resistance when opening and closing the door.
Made from a flexible elastomeric material, the LAS1212K boasts long-lasting performance as the fins spring back to their original shape after each use. Suitable for both single and double leaf doors on the head and jambs, this Batwing® seal installs with minimal disruption, offering a simple solution for smoke and acoustic containment.
System specification
| Property | LAS1212K |
|---|---|
| TEST EVIDENCE | Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 37dB). Durability: minimum of 100,000 cycles |
| Characteristics | Contributes towards sound, smoke, draught, and light containment |

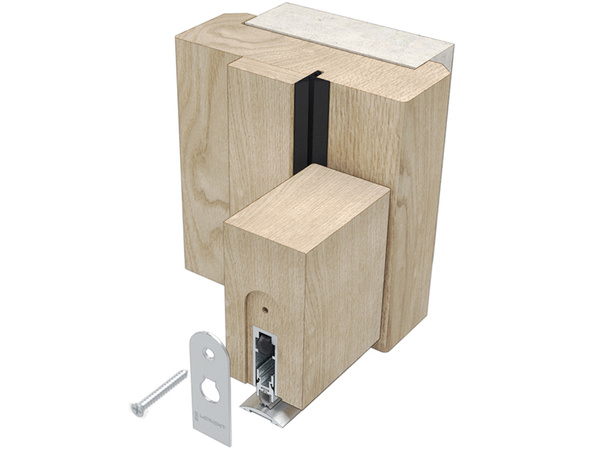

| LOCATION | Head + jambs of single + double leaf doors |
| MIN/MAX GAP SIZES | 3mm/4mm |
| SEAL MATERIAL | Co-extruded rigid back PVC with flexible fins |
| Standard colours | White, black, dark brown, light brown and grey |
| Non-standard finishes | Cream, red and clear subject to MOQ |
| STANDARD LENGTHS | 1m + 2.1m. Single doorset pack consisting of 1 x 1m + 2 x 2.1m. Other lengths to special order |
| CERTIFICATION | |
| Certifire | - |
| UL | R27972 |
