AAS8501 Drop Seal
AURA®

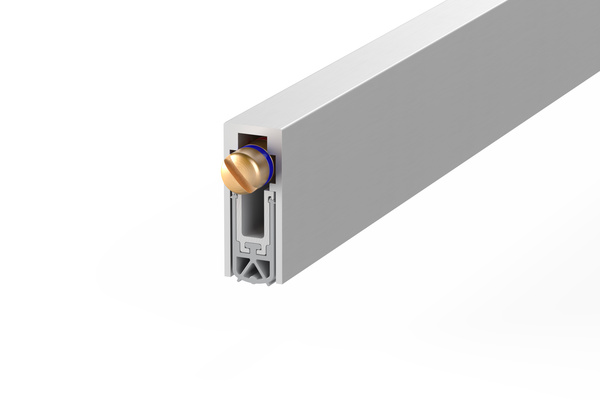

A highly effective, self-levelling drop seal with a unique wrap-around gasket for optimum acoustic + smoke containment. Coloured bands on the brass button help with fine adjustment for varying door gaps.
Finish
System specification
| Property | |
|---|---|
| Test evidence | Acoustic: BS EN ISO 10140-2: 2010, BS EN ISO 10140-1: 2010 + A2: 2014 (Annex J) up to Rw 41dB Smoke: BS EN 1634-3: 2004 & BS 476-31.1: 1983 at ambient temperature. Durability 1 million cycles on full-size door assemblies |
| LOCATION | Single swing doors. For use on both right + left handed doors |
| Min/max gap size | 1mm / 13mm |
| SEAL MATERIAL | Silicone |
| Standard finish | Silver anodised aluminium with silver end plates and silver silicone gasket |
| Non-standard finish | Silver anodised aluminium with bronze end plates and black silicone gasket are subject to non-standard charges and additional lead times |
| STANDARD LENGTHS | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm. Longer lengths available |
| CERTIFICATION | |
| Certifire | CF5179 |
| UL | R27972 |
